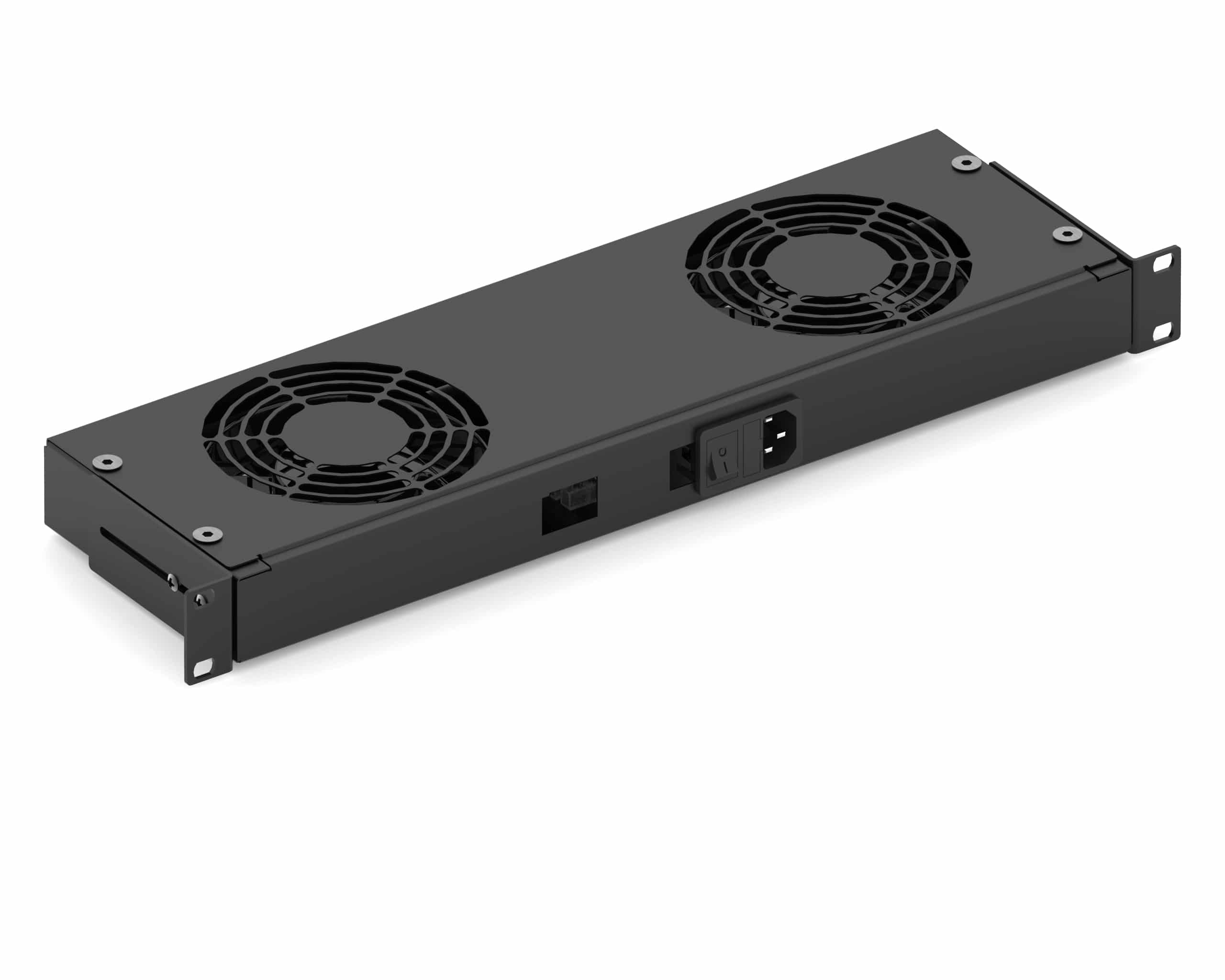

19” 1U ventilation unit
Ventilation units and fans are used to cool the equipment installed in the cabinet using air extracted from the room. They are primarily suitable for low thermal loads.
Main features:
- Product line: Standard fans with AC drives.
- Technical information:
- Ventilation units: Models DP-VEN-02, DP-VEN-03, DP-VEN-04, DP-VEN-06, DP-VEN-09.
- Function: Fan units force airflow through the cabinet to improve cooling.
- Number of fans: Two to nine fans.
- Installation options:
a) On 19” rails – horizontally.
b) On the top or bottom frame of the cabinet (installation kit required). - Temperature range: -10 °C to +55 °C.
- Thermostat: Includes a thermostat with a range of 0-60 °C.
- Voltage: 230V / 50-60Hz (48V DC optional).
- Protection: According to EN 60529, IP20.
- Colour: RAL 9005 powder coating.
- Package contents: Ventilation unit with 19” brackets, thermostat, power cable, installation kit DP-MO-01.
| code | 220V | 110V |
|---|---|---|
| 32155078 | * | |
| 32155079 | * |
